Dotz Flood
Archive

Brand

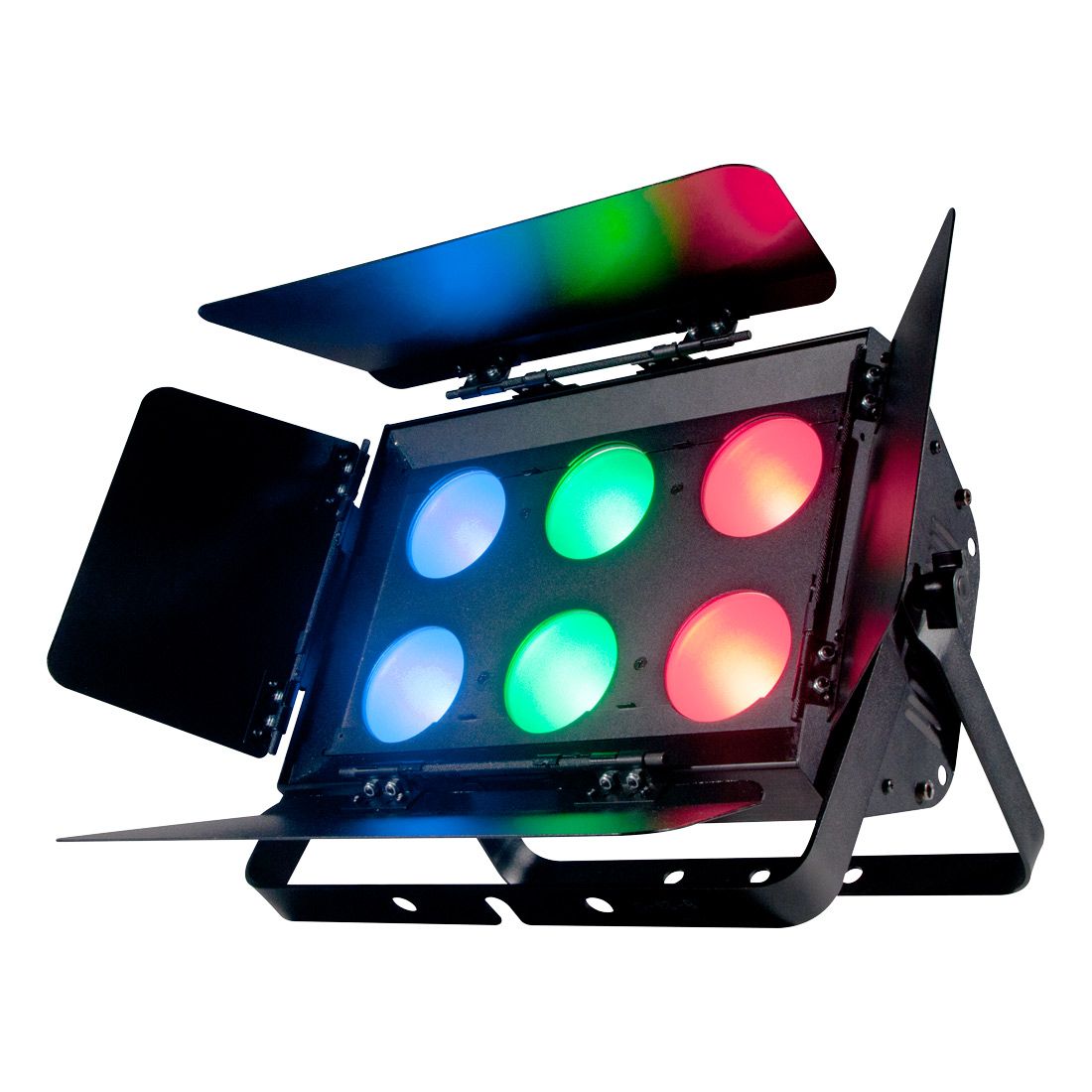

ADJ’s Dotz Flood is a Wash/Blinder fixture with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing fixture powered by six TRI COB LEDs  Dotz Flood is suitable for staging and nightclub lighting. Dotz Flood includes barn doors to regulate the beam angle. The maximum beam angle is a wide 60 degrees. This fixture is compatible with the ADJ DF FC wireless foot controller with...

Product Information

SKU: 1215200024
GTIN: 819730010735
HS-Code: 9029209000

ADJ’s Dotz Flood is a Wash/Blinder fixture with advanced COB LED technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing fixture powered by six TRI COB LEDs  Dotz Flood is suitable for staging and nightclub lighting.

Dotz Flood includes barn doors to regulate the beam angle. The maximum beam angle is a wide 60 degrees. This fixture is compatible with the ADJ DF FC wireless foot controller with a wire-free range up to 30ft./10M.

The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, built-in shows and colors macros, and a 4-button LCD DMX display. Dotz Flood may run in its stand-alone mode from built-in programs or from a DMX Controller. It’s also compatible with the ADJ UC3 Series controllers.



Specification

    Specifications
    - Wash/Blinder fixture with six COB TRI LEDs (RGB: 3-IN1): 2 x 3 COB LED matrix panels
    - COB Technology (Chip On Board) produces powerful, smooth RGB color mixing with rich palettes of color
    - Includes barn doors to regulate beam angle
    - Great for Stage Lighting, Bands or Night Clubs
    - 6 DMX Channels: 1, 2, 3, 4, 6 and two 9 channel modes
    - 4 Operational modes: Auto (Show Run), Manual RGB Dimmer, Static Color, and DMX-512 Mode
    - 12 Built-In Programs Shows
    - 32 Built-In Color Macros (In DMX Mode Only)
    - Flicker Free
    - LED pulse and strobe effect
    - Pixel mapping capable
    - 60-degree beam angle
    - Electronic Dimming: 0 - 100%
    - Linkable via 3-pin XLR cable
    - IEC AC IN/OUT on rear to daisy chain power (up to 5 Dotz Flood's @ 120V and 9 Dotz Flood's @ 230V )
    - 4-button LCD display on rear panel
    - Dual yoke system allows fixture to be hung or set on the ground
    - Fan Cooled
    - Light Source: 6x 30-Watt COB TRI LEDs (RGB: 3-IN1):
    - Power Draw: 120W
    - Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
    - Built-in RF antenna compatible with ADJ DF FC wireless RF foot controller, control up to 30 ft./ 10M wirelessly (sold separately)
    - Multi-voltage Operation: AC 100V/60Hz - 240V/50Hz
    - Dimensions (LxWxH): 394x318x196mm
    - Weight: 7.2 kg

      Specifications subject to change without notice.
